AVL.MergeChannels(AvlNet.Image, AvlNet.Image, AvlNet.Image, AvlNet.Image, AvlNet.Image)

Creates a multichannel image from several monochromatic ones.

Namespace:AvlNet
Assembly:AVL.NET.dll

Syntax


public static void MergeChannels(
	AvlNet.Image inMonoImage1,
	AvlNet.Image inMonoImage2,
	AvlNet.Image inMonoImage3,
	AvlNet.Image inMonoImage4,
	out AvlNet.Image outImage
)

Parameters

inMonoImage1
Type: AvlNet.Image
An image that becomes the first channel
inMonoImage2
Type: AvlNet.Image
An image that becomes the second channel
inMonoImage3
Type: AvlNet.Image
An image that becomes the third channel, or null.
inMonoImage4
Type: AvlNet.Image
An image that becomes the fourth channel, or null.
outImage
Type: AvlNet.Image
Output image

Description

The operation combines the given monochromatic images to obtain a color image, each of its channels equal to the only channel of the corresponding input image.

Examples

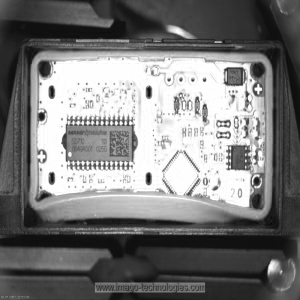

An example image used as inMonoImage1.

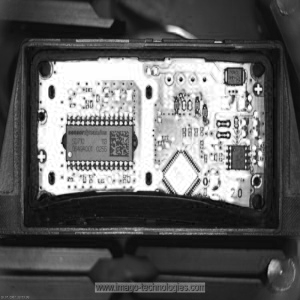

An example image used as inMonoImage2.

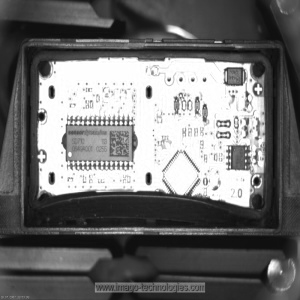

An example image used as inMonoImage3.

The resulting outImage.

Hardware Acceleration

This operation supports automatic parallelization for multicore and multiprocessor systems.

Hardware acceleration settings may be manipulated with Settings class.

Errors

Error type Description
DomainError Image sizes are not equal in MergeChannels.
DomainError Input image is not monochromatic in MergeChannels.
DomainError Pixel types of the input images are not the same in MergeChannels.
