AVL.CreateCoordinateSystemFromPoint(AvlNet.Point2D, float, float, float, AvlNet.CoordinateSystem2D)

Namespace:	AvlNet
Assembly:	AVL.NET.dll

Syntax


public static void CreateCoordinateSystemFromPoint(
	AvlNet.Point2D inPoint,
	float inAngle,
	float inScale,
	float inScaleDivisor,
	out AvlNet.CoordinateSystem2D outCoordinateSystem
)

Parameters

inPoint: Type: AvlNet.Point2D
inAngle: Type: System.Single
inScale: Type: System.Single
inScaleDivisor: Type: System.Single
outCoordinateSystem: Type: AvlNet.CoordinateSystem2D

Examples

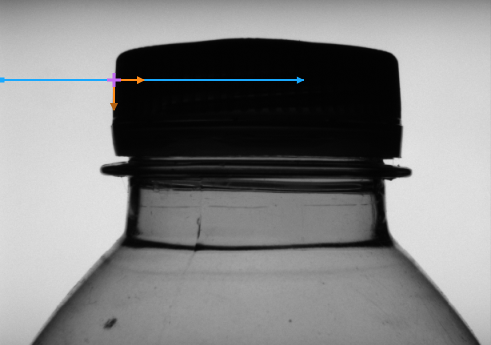

A local coordinate system created from a point. Here, the point is located with a 1D Edge Detection filter.

Remarks

Read more about Local Coordinate Systems in Machine Vision Guide: Local Coordinate Systems.

See also
