PathToPointDistance

Computes the smallest distance between a path and a point.

Syntax

void avl::PathToPointDistance
(
	const avl::Point2D& inPoint,
	const avl::Path& inPath,
	atl::real inResolution,
	atl::real& outDistance,
	atl::Optional<avl::Segment2D&> outConnectingSegment = atl::NIL
)

void PathToPointDistance
(
	AvlNet.Point2D inPoint,
	AvlNet.Path inPath,
	float inResolution,
	out float outDistance,
	out AvlNet.Segment2D? outConnectingSegment
)

Parameters

Name	Type	Range	Default	Description
inPoint	const Point2D&			Input point
inPath	const Path&			Input path
inResolution	real	0.0 -	1.0f
outDistance	real&			Minimal distance between input path and input point
outConnectingSegment	Optional<Segment2D&>		NIL	Segment connecting input path and input point having minimal length

Description

The operation computes the minimal distance between the inPoint and inPath and, additionally, the outConnectingSegment segment corresponding to the result.

Examples

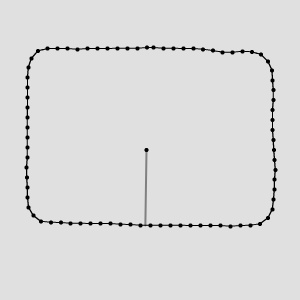

The PathToPointDistance run on the sample data produces outDistance = 75.373.

Errors
