CreateCylinderMap


Creates a spatial map for transformations from a cylinder surface to a flat rectangle.

Syntax

C++
C#

void avl::CreateCylinderMap
(
	const avl::ImageFormat& inImageFormat,
	const avl::Rectangle2D& inCylinderRectangle,
	const atl::real inCylinderRadiusCorrection,
	atl::Optional<avl::Point2D> inOpticalAxis,
	atl::Optional<int> inNewWidth,
	atl::Optional<int> inNewHeight,
	const int inMargin,
	avl::InterpolationMethod::Type inInterpolationMethod,
	avl::SpatialMap& outSpatialMap,
	atl::Optional<avl::Region&> outOutputRegion = atl::NIL
)

Parameters

Name Type Range Default Description
inImageFormat const ImageFormat& Information about dimensions, depth and pixel type of the image
inCylinderRectangle const Rectangle2D& Bounding rectangle of the cylinder
inCylinderRadiusCorrection const real 0.0 - 0.0f How many pixels the cylinder radius is larger than the visible circle radius
inOpticalAxis Optional<Point2D> NIL Coordinates of the camera optical axis (Auto = image center)
inNewWidth Optional<int> 1 - NIL Width of an image created by output spatial map application
inNewHeight Optional<int> 1 - NIL Height of an image created by output spatial map application
inMargin const int 0 - 0 Width of the cylinder extreme points zone excluded from spatial map
inInterpolationMethod InterpolationMethod::Type Bilinear Interpolation method used in extraction of image pixel values
outSpatialMap SpatialMap& Output spatial map
outOutputRegion Optional<Region&> NIL Pixels set by the spatial map application

Examples

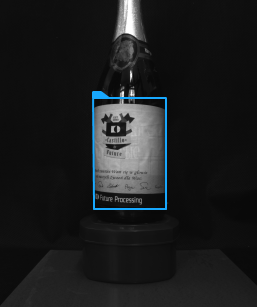

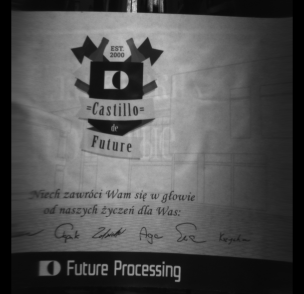

Results of applying RemapImage with a spatial map created with the CreateCylinderMap filter.

Hardware Acceleration

This operation supports automatic parallelization for multicore and multiprocessor systems.

Errors

Error type Description
DomainError Empty domain in CreateCylinderMap.
