ColorizeImage

Shows a monochromatic image in false colors.

Syntax

void avl::ColorizeImage
(
	ColorizeImageState& ioState,
	const avl::Image& inImage,
	atl::Optional<const avl::Region&> inRoi,
	avl::ColorPalette::Type inPalette,
	bool inNegate,
	atl::Optional<int>& inMinValue,
	atl::Optional<int>& inMaxValue,
	avl::Image& outImage
)

void ColorizeImage
(
	ref AvlNet.ColorizeImageState ioState,
	AvlNet.Image inImage,
	AvlNet.Region inRoi,
	AvlNet.ColorPalette inPalette,
	bool inNegate,
	int? inMinValue,
	int? inMaxValue,
	out AvlNet.Image outImage
)

Parameters

Name	Type	Default	Description
ioState	ColorizeImageState&		Object used to maintain state of the function.
inImage	const Image&		Input image
inRoi	Optional<const Region&>	NIL	Range of pixels to be processed
inPalette	ColorPalette::Type	Iron	Palette of colors which is used to replace pixels
inNegate	bool		Reversing palette colors
inMinValue	Optional<int>&	0	Minimal value of pixel that will be replaced by color from palette otherwise black pixel will be set
inMaxValue	Optional<int>&	255	Maximal value that will be replaced using color from value otherwise last color from palette will be set.
outImage	Image&		Output image

Description

This filter is especially useful for visualization purposes. Hue and RedBlue pallets are useful for scientific visualization and the Iron palette is prepared for showing infrared images in thermo-graphic appliances.

Parameters inMinValue and inMaxValue defines the scale that should be applied to image pixels. Pixels outside this range are reduced to minimal or maximal value in range.

If parameters inMinValue or inMaxValue is set to Auto the filter will find the maximal or minimal pixel value.

This filter works only with single channel images.

Hints

Consider resizing image to smaller format if image does not require to contain details.
This filter can be used to show differences between object and background noises.

Examples

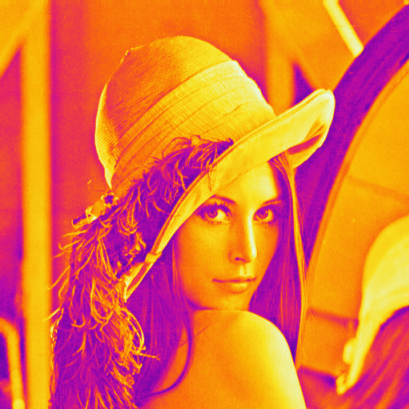

The ColorizeImage performed on the result of TestImage with inPalette set to Iron.

Remarks

Filter pre-computes after changing its parameter which can affect the filter's execution speed. Try to avoid changing filter's parameter during program execution.

Hardware Acceleration

This operation supports automatic parallelization for multicore and multiprocessor systems.

Errors

Error type	Description
DomainError	Input image must have 1xUInt8 or 1xUInt16 format in ColorizeImage.
DomainError	inMinValue is bigger than inMaxValue in ColorizeImage.
