DetectPaths

Finds paths in an image.

Syntax

void avl::DetectPaths
(
	const avl::Image& inImage,
	atl::Optional<const avl::Region&> inRoi,
	const avl::Path& inPath,
	atl::real inMinScore,
	atl::real inEdgeThreshold,
	atl::Array<avl::Path>& outPaths,
	atl::Array<atl::real>& outScores,
	avl::Image& diagGradientMagnitudeImage,
	avl::Image& diagScoreImage
)

void DetectPaths
(
	AvlNet.Image inImage,
	AvlNet.Region inRoi,
	AvlNet.Path inPath,
	float inMinScore,
	float inEdgeThreshold,
	out AvlNet.Path[] outPaths,
	out float[] outScores,
	out AvlNet.Image diagGradientMagnitudeImage,
	out AvlNet.Image diagScoreImage
)

Parameters

Name	Type	Range	Default	Description
inImage	const Image&			Input image
inRoi	Optional<const Region&>		NIL	Input region of interest
inPath	const Path&			Input path
inMinScore	real	0.0 -	20.0f	Minimum matching score
inEdgeThreshold	real		10.0f	Minimum accepted edge magnitude
outPaths	Array<Path>&			Output paths
outScores	Array<real>&			Output scores
diagGradientMagnitudeImage	Image&			Visualized gradients magnitude of an input image
diagScoreImage	Image&			Calculated score for each pixel of an input image

Description

The operation detects paths in the inImage using the Generalized Hough Transform approach. The output array is ordered from best matching to worst matching results.

Examples

A sample path (scaled for convenience).

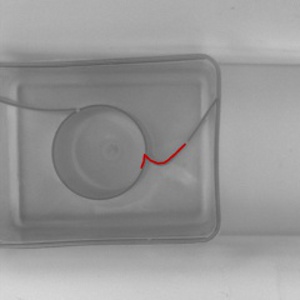

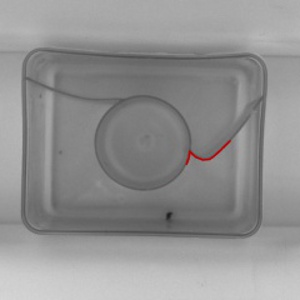

DetectPaths performed on the sample images with inMinScore = 0.7.

Remarks

DetectPaths is not scale- or rotation-invariant (slightly scaled or rotated paths are, however, detected properly).

Long inPaths cause long computation time.

Errors

Error type	Description
DomainError	Degenerate path in DetectPaths.
