RotateRectangle

Rotates a rectangle clockwise around a center point.

Syntax

void avl::RotateRectangle
(
	const avl::Rectangle2D& inRectangle,
	atl::Optional<const avl::Point2D&> inCenter,
	atl::real inAngle,
	bool inInverse,
	avl::Rectangle2D& outRectangle
)

void RotateRectangle
(
	AvlNet.Rectangle2D inRectangle,
	AvlNet.Point2D? inCenter,
	float inAngle,
	bool inInverse,
	out AvlNet.Rectangle2D outRectangle
)

Parameters

Name	Type	Default	Description
inRectangle	const Rectangle2D&
inCenter	Optional<const Point2D&>	NIL	Center of rotation (the rectangle's point by default)
inAngle	real		Clockwise rotation angle
inInverse	bool		Switches to the inverse operation
outRectangle	Rectangle2D&

Examples

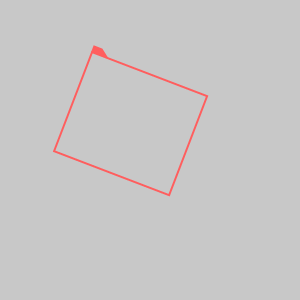

RotateRectangle performed on the sample rectangle, inCenter = Auto, inAngle = 40.0 and inInverse = False.
