RotatePoint

Rotates a point clockwise around a center point.

Syntax

void avl::RotatePoint
(
	const avl::Point2D& inPoint,
	const avl::Point2D& inCenter,
	atl::real inAngle,
	bool inInverse,
	avl::Point2D& outPoint
)

void RotatePoint
(
	AvlNet.Point2D inPoint,
	AvlNet.Point2D inCenter,
	float inAngle,
	bool inInverse,
	out AvlNet.Point2D outPoint
)

Parameters

Name	Type	Description
inPoint	const Point2D&
inCenter	const Point2D&	Center of rotation
inAngle	real	Clockwise rotation angle
inInverse	bool	Switches to the inverse operation
outPoint	Point2D&

Examples

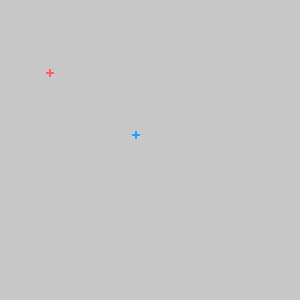

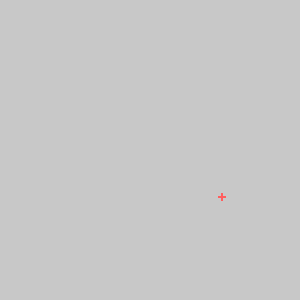

RotatePoint performed on the sample point, inCenter = (136.0, 135.0), inAngle = 180.0 and inInverse = False. The inCenter point is drawn on the first image in blue.
