LineArcIntersection
Computes the common points of an arc and a line.
Syntax
C++
C#
void avl::LineArcIntersection ( const avl::Line2D& inLine, const avl::Arc2D& inArc, atl::Conditional<avl::Point2D>& outIntersectionPoint1, atl::Conditional<avl::Point2D>& outIntersectionPoint2 )
Parameters
| Name | Type | Default | Description | |
|---|---|---|---|---|
 |
inLine | const Line2D& | ||
|
inArc | const Arc2D& | ||
 |
outIntersectionPoint1 | Conditional<Point2D>& | ||
|
outIntersectionPoint2 | Conditional<Point2D>& |
Examples
 |
 |

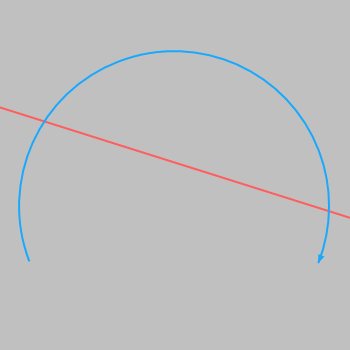

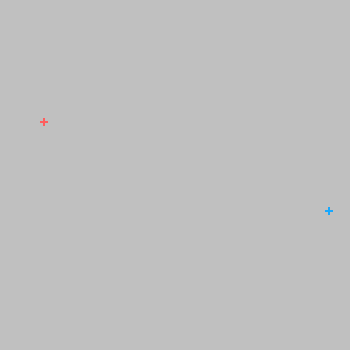

LineArcIntersection performed on line and arc.
Errors
| Error type | Description |
|---|---|
| DomainError | Indefinite line on input in LineArcIntersection. |
