AngleBetweenDirections
Measures the rotation angle from first to second direction.
Syntax
C++
C#
void avl::AngleBetweenDirections ( atl::real inDirection1, atl::real inDirection2, atl::Optional<avl::RotationDirection::Type> inRotationDirection, avl::AngleRange::Type inAngleRange, atl::Optional<atl::real&> outAbsoluteAngle, atl::Optional<atl::real&> outDirectedAngle )
Parameters
| Name | Type | Default | Description | |
|---|---|---|---|---|
 |
inDirection1 | real | Start direction | |
|
inDirection2 | real | Target direction | |
|
inRotationDirection | Optional<RotationDirection::Type> | NIL | Clockwise, counter-clockwise or automatic (by smaller angle) |
|
inAngleRange | AngleRange::Type | Switches between ranges <0, 180) and <0, 360) | |
 |
outAbsoluteAngle | Optional<real&> | Angle value used for measurements <0, 360> | |
|
outDirectedAngle | Optional<real&> | Angle value used for clockwise transformations <-360, 360> |
Description

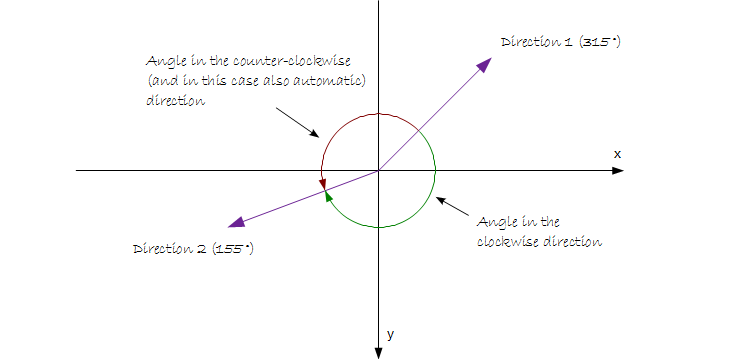

Direction is a number in the range of <0, 180) or <0, 360). This is controlled with the inAngleRange input. The angle is computed from first to second direction clockwise or counter-clockwise. If the rotation direction is not specified, chosen is the one that produces smaller absolute angle.
Examples
