SplitRegionIntoExactlyNComponents
Splits a region into a fixed-size array of regions. Minimizes distances between blobs belonging to a single component.
| Name | Type | Range | Description | |
|---|---|---|---|---|
 |
inRegion | Region | Input region | |
|
inComponentCount | Integer | 1 -  |
|
|
inRemoveBoundaryBlobs | Bool | Flag indicating whether the blobs on border of the input region should be removed or not | |
|
inSplitAlgorithm | SplitAlgorithm* | Algorithm that is used to split the region, if set to Auto, the algorithm with shorter predicted time of execution will be chosen | |
 |
outComponents | RegionArray? | ||
Examples
 |
 |

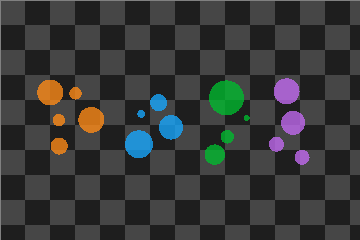

SplitRegionIntoExactlyNComponents used with inComponentCount = 4.
Remarks
This filter is mostly used in Blob Analysis Technique please refer to our Machine Vision Guide - Blob Analysis article.
Complexity Level
This filter is available on Basic Complexity Level.
Filter Group
This filters is member of SplitRegionIntoComponents filter group.
