CropImageToRectangle

Creates an image from a rectangular fragment of another image (with black margins if requested).

	Name	Type	Range	Description
	inImage	Image		Input image
	inRectangle	Rectangle2D		Rectangle defining a rotated subimage
	inRectangleAlignment	CoordinateSystem2D*		Adjusts the rectangle to the position of the inspected object
	inInterpolationMethod	InterpolationMethod
	inMargin	Real	0.0 -	Width of an additional black margin for the output image
	outImage	Image		Output image
	outAlignedRectangle	Rectangle2D		Input rectangle after transformation (in the image coordinates)
	outOutputAlignment	CoordinateSystem2D		Alignment of the output image

Applications

Examples

Description of usage of this filter can be found in examples and tutorial: Comparing Golden Template.

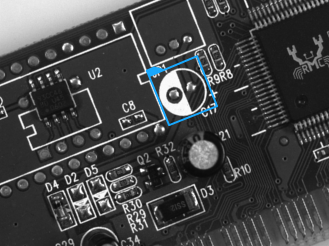

CropImageToRectangle used to extract an image of an object.

Complexity Level

Filter Group
