Washers

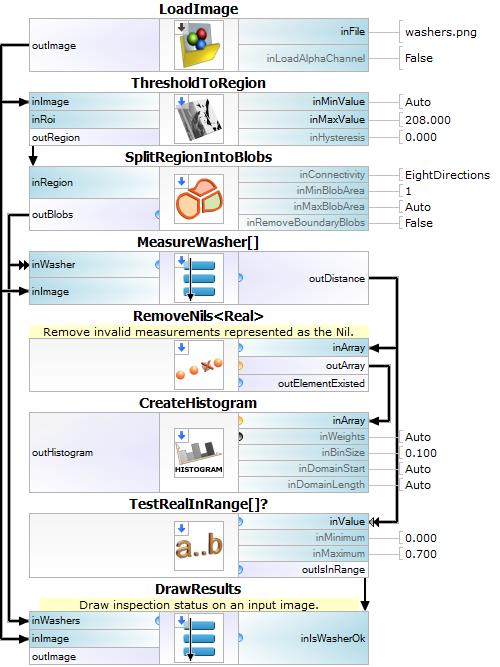

Macrofilter Main

Icon	Name	Description
	ChooseByPredicate	E.g. to choose GREEN color to visualize correct objects or RED to visualize defective ones.
	TranslatePoint	Translates a point by a vector.
	TestRealInRange	Checks whether a real value is in the specified range.

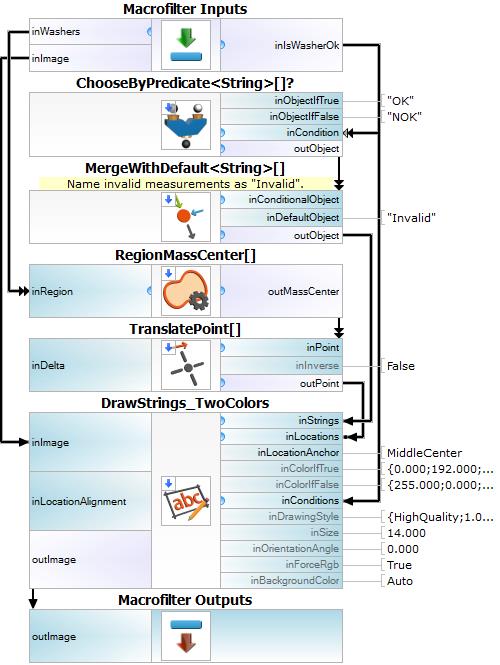

	DrawStrings_TwoColors	Draws strings (text) on an image with two colors, depending on the status of each string (usually: green or red for pass/fail status).
	ThresholdToRegion	Extraction of a region of objects that can be defined by a salient brightness.
	PointToPointDistance	Measures the distance between two points.
	CreateCoordinateSystemFromPoint	Most often used to define an object alignment from results of 1D Edge Detection or Blob Analysis.
	MergeWithDefault	This filter is usually used at the end of a program or subprogram to decide how to resolve special cases, represented by the Nil value.
	CreateHistogram	Creates the histogram of the array of real numbers.
	RegionMassCenter	Computes a point with coordinates equal to the average coordinates of the region's pixels.

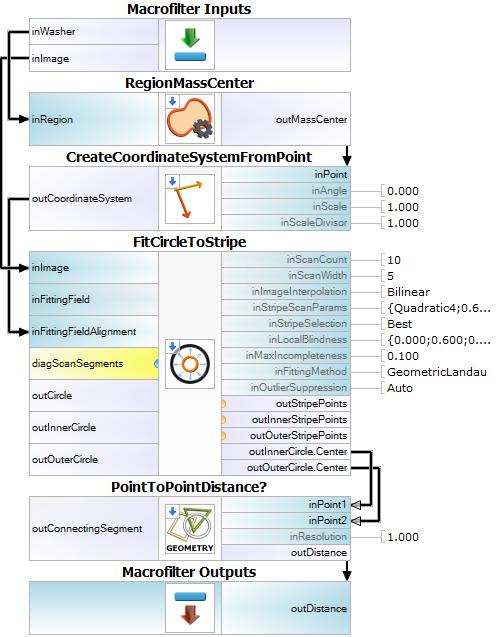

	FitCircleToStripe	Precise detection of ring-shaped objects, whose rough location is known beforehand.
	LoadImage	Loads a single image from a file.
	SplitRegionIntoBlobs	Segmentation of a region into individual objects when the objects do not touch each other.
	RemoveNils	This filter is useful e.g. when inspecting multiple objects while some of the inspections may fail (Nil result). RemoveNils is used to ignore the failed cases in the final result.
