Capsules

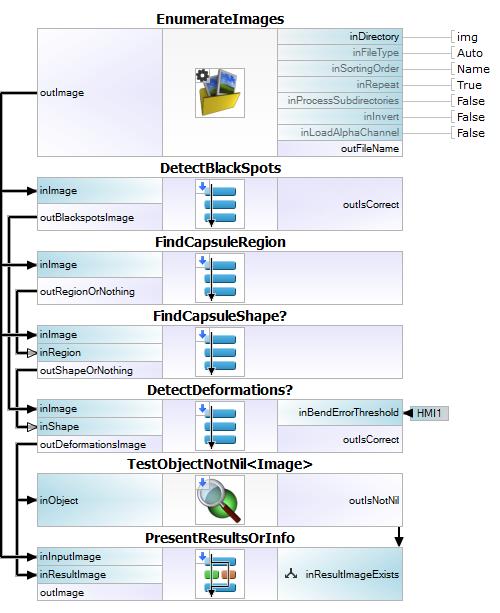

Macrofilter Main

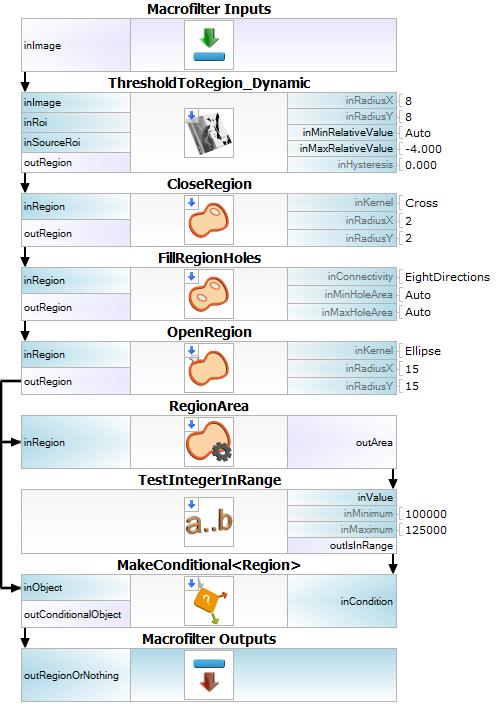

Macrofilter FindCapsuleRegion

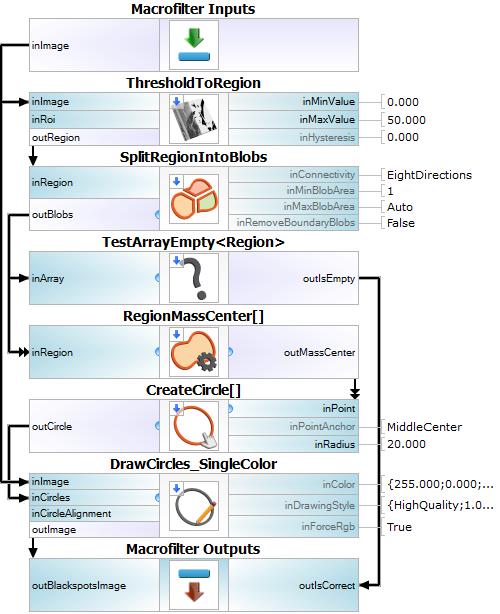

Macrofilter DetectBlackSpots

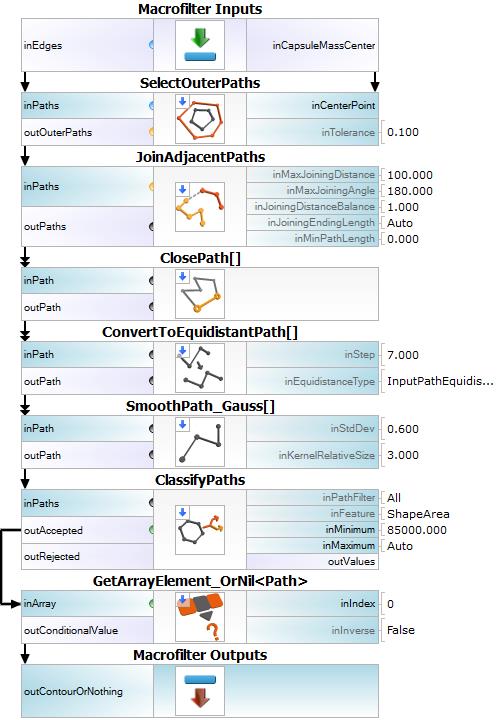

Macrofilter CombineEdgesIntoContour

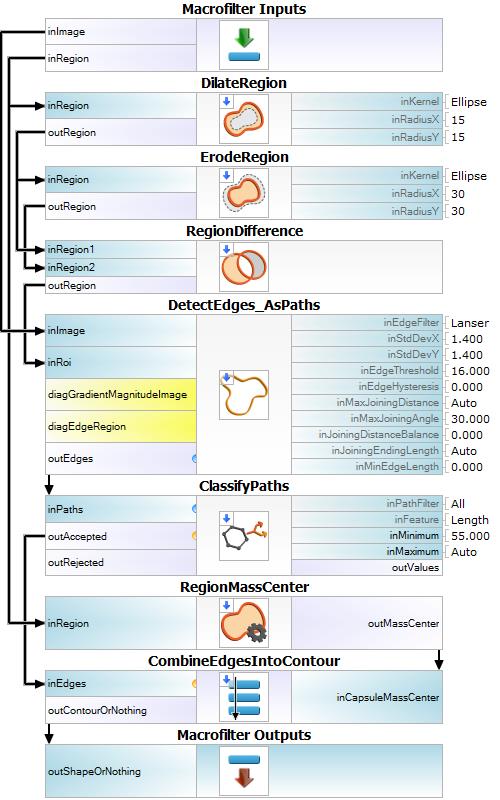

Macrofilter FindCapsuleShape

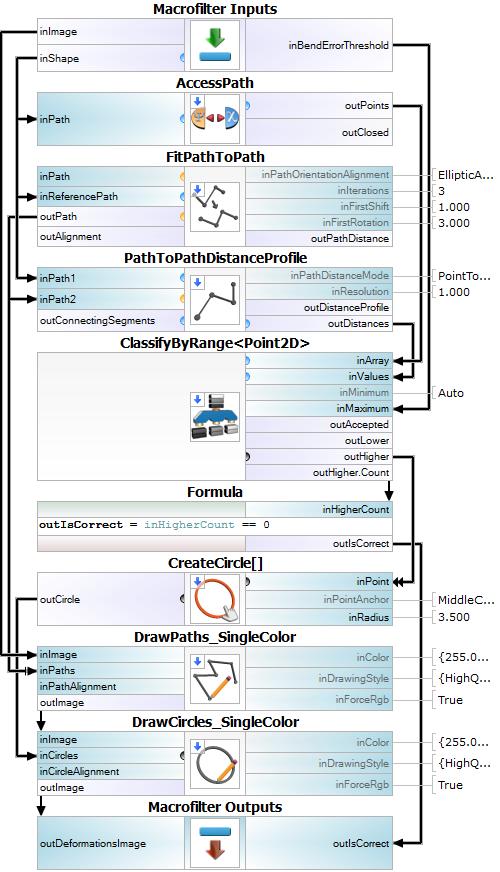

Macrofilter DetectDeformations

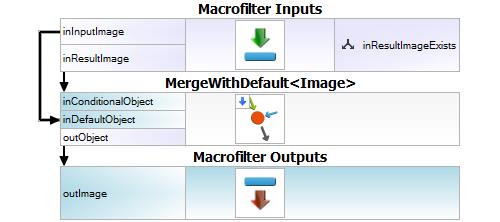

Macrofilter PresentResultsOrInfo(True)

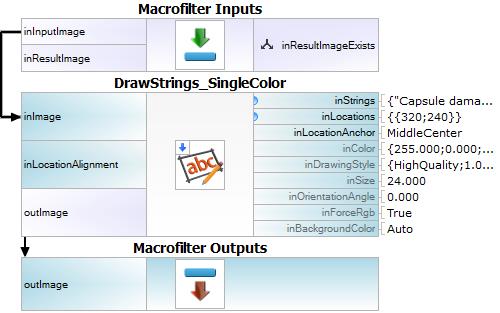

Macrofilter PresentResultsOrInfo(False)
