AVL.CreateCylinderMap(AvlNet.ImageFormat, AvlNet.Rectangle2D, float, AvlNet.Point2D?, int?, int?, int, AvlNet.InterpolationMethod, AvlNet.SpatialMap, AvlNet.Region)

Creates a spatial map for transformations from a cylinder surface to a flat rectangle.

Namespace:	AvlNet
Assembly:	AVL.NET.dll

Syntax


public static void CreateCylinderMap(
	AvlNet.ImageFormat inImageFormat,
	AvlNet.Rectangle2D inCylinderRectangle,
	float inCylinderRadiusCorrection,
	AvlNet.Point2D? inOpticalAxis,
	int? inNewWidth,
	int? inNewHeight,
	int inMargin,
	AvlNet.InterpolationMethod inInterpolationMethod,
	out AvlNet.SpatialMap outSpatialMap,
	out AvlNet.Region outOutputRegion
)

Parameters

inImageFormat: Type: AvlNet.ImageFormat
Information about dimensions, depth and pixel type of the image
inCylinderRectangle: Type: AvlNet.Rectangle2D
Bounding rectangle of the cylinder
inCylinderRadiusCorrection: Type: System.Single
How many pixels the cylinder radius is larger than the visible circle radius
inOpticalAxis: Type: System.Nullable<AvlNet.Point2D>
Coordinates of the camera optical axis (Auto = image center), or null.
inNewWidth: Type: System.Nullable<System.Int32>
Width of an image created by output spatial map application, or null.
inNewHeight: Type: System.Nullable<System.Int32>
Height of an image created by output spatial map application, or null.
inMargin: Type: System.Int32
Width of the cylinder extreme points zone excluded from spatial map
inInterpolationMethod: Type: AvlNet.InterpolationMethod
Interpolation method used in extraction of image pixel values
outSpatialMap: Type: AvlNet.SpatialMap
Output spatial map
outOutputRegion: Type: AvlNet.Region

Examples

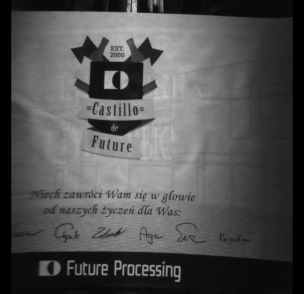

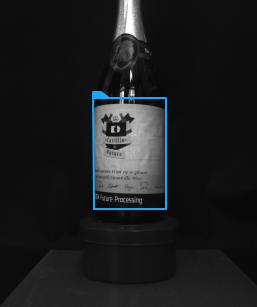

Results of applying RemapImage with a spatial map created with the CreateCylinderMap filter.

Hardware Acceleration

This operation supports automatic parallelization for multicore and multiprocessor systems.

Hardware acceleration settings may be manipulated with Settings class.

Errors
