AVL.RotateLine(AvlNet.Line2D, AvlNet.Point2D, float, bool, AvlNet.Line2D)

Rotates a line clockwise around a center point.

Namespace:AvlNet
Assembly:AVL.NET.dll

Syntax


public static void RotateLine(
	AvlNet.Line2D inLine,
	AvlNet.Point2D inCenter,
	float inAngle,
	bool inInverse,
	out AvlNet.Line2D outLine
)

Parameters

inLine
Type: AvlNet.Line2D
inCenter
Type: AvlNet.Point2D
Center of rotation
inAngle
Type: System.Single
Clockwise angle of rotation
inInverse
Type: System.Boolean
Switches to the inverse operation
outLine
Type: AvlNet.Line2D

Examples

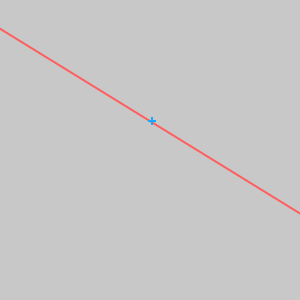

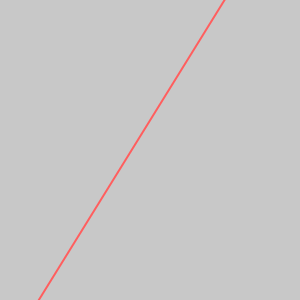

RotateLine performed on the sample line, inCenter = (152.0, 121.0), inAngle = 90.0 and inInverse = False. The inCenter point is drawn on the first image in blue.

Errors

Error type Description
DomainError Indefinite line on input in RotateLine.
