AVL.FitSegmentToRidges(AvlNet.Image, AvlNet.SegmentFittingMap, AvlNet.RidgeScanParams, AvlNet.Selection, AvlNet.LocalBlindness, float, AvlNet.MEstimator?, AvlNet.Segment2D?, AvlNet.Point2D[], AvlNet.Profile, float[], AvlNet.Profile[], AvlNet.Profile[])

Performs a series of 1D ridge detections and finds a segment that best matches the detected points.

Namespace:	AvlNet
Assembly:	AVL.NET.dll

Syntax


public static void FitSegmentToRidges(
	AvlNet.Image inImage,
	AvlNet.SegmentFittingMap inFittingMap,
	AvlNet.RidgeScanParams inRidgeScanParams,
	AvlNet.Selection inRidgeSelection,
	AvlNet.LocalBlindness inLocalBlindness,
	float inMaxIncompleteness,
	AvlNet.MEstimator? inOutlierSuppression,
	out AvlNet.Segment2D? outSegment,
	out AvlNet.Point2D[] outRidgePoints,
	out AvlNet.Profile outDeviationProfile,
	out float[] outRidgeMagnitudes,
	out AvlNet.Profile[] diagBrightnessProfiles,
	out AvlNet.Profile[] diagResponseProfiles
)

Parameters

inImage: Type: AvlNet.Image
Image to fit segment to
inFittingMap: Type: AvlNet.SegmentFittingMap
Input fitting map
inRidgeScanParams: Type: AvlNet.RidgeScanParams
Parameters controlling the ridge extraction process
inRidgeSelection: Type: AvlNet.Selection
Selection mode of ridges
inLocalBlindness: Type: AvlNet.LocalBlindness
Defines conditions in which weaker ridges can be detected in the vicinity of stronger ridges, or null.
inMaxIncompleteness: Type: System.Single
Maximal fraction of ridge points not found
inOutlierSuppression: Type: System.Nullable<AvlNet.MEstimator>
Selects a method for ignoring incorrectly detected points, or null.
outSegment: Type: System.Nullable<AvlNet.Segment2D>
Fitted segment or nothing if the fitting fails
outRidgePoints: Type: AvlNet.Point2D
outDeviationProfile: Type: AvlNet.Profile
outRidgeMagnitudes: Type: System.Single
diagBrightnessProfiles: Type: AvlNet.Profile
Extracted image profiles
diagResponseProfiles: Type: AvlNet.Profile
Profiles of the ridge operator response

Description

The operation tries to fit a given segment to ridges present in the inImage image. Internally, it performs a series of scans with the ScanSingleRidge filter using inFittingMap previously generated from the object being fitted. The found points are then used to determine the actual position of the segment in the image. Only inMaxIncompleteness fraction of these scans may fail. If the fitting according to the given parameters is not possible, outSegment is set to Nil.

Examples

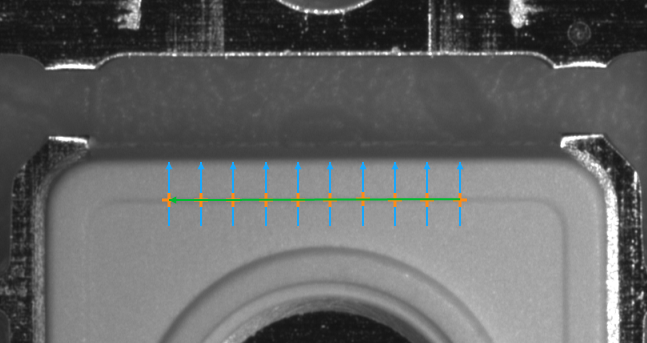

Fitting a segment to a line on an object
(inRidgeScanParams.RidgePolarity = Dark).

Remarks

For more information about local coordinate systems please refer to the following article.
