AVL.PathAverageTurnAngle(AvlNet.Path, float)

Computes the average absolute turn angle of a path per unit of length.

Namespace:	AvlNet
Assembly:	AVL.NET.dll

Syntax


public static void PathAverageTurnAngle(
	AvlNet.Path inPath,
	out float outAverageTurnAngle
)

Parameters

inPath: Type: AvlNet.Path
Input path
outAverageTurnAngle: Type: System.Single

Description

The operation measures acuteness of the path turn angles. It is computed as the sum of absolute values of path turn angles at path characteristic points divided by length of the path.

Examples

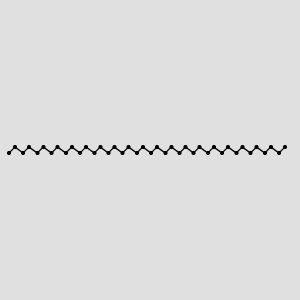

PathAverageTurnAngle of the sample path equals to 161.57.

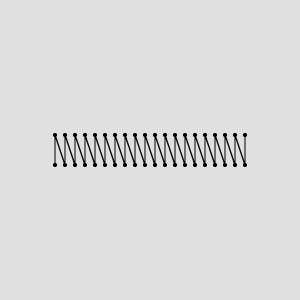

PathAverageTurnAngle of the sample path equals to 81.16.

Errors
