You are here: Start » AVL.NET » AVL.RotateImage(AvlNet.Image, float, AvlNet.RotationSizeMode, AvlNet.InterpolationMethod, bool, AvlNet.Image)

AVL.RotateImage(AvlNet.Image, float, AvlNet.RotationSizeMode, AvlNet.InterpolationMethod, bool, AvlNet.Image)

Rotates an image clockwise.

Namespace:	AvlNet
Assembly:	AVL.NET.dll

Syntax


public static void RotateImage(
	AvlNet.Image inImage,
	float inAngle,
	AvlNet.RotationSizeMode inSizeMode,
	AvlNet.InterpolationMethod inInterpolationMethod,
	bool inInverse,
	out AvlNet.Image outImage
)

Parameters

inImage: Type: AvlNet.Image
Input image
inAngle: Type: System.Single
Rotation angle (clockwise)
inSizeMode: Type: AvlNet.RotationSizeMode
inInterpolationMethod: Type: AvlNet.InterpolationMethod
inInverse: Type: System.Boolean
'True' changes rotation to counter-clockwise
outImage: Type: AvlNet.Image
Output image

Description

The operation rotates the inImage around its center. Dimensions of the resulting image depends on inSizeMode parameter. In 'Fit' mode size is extended to fit the rotated image. In 'Preserve' mode size of source image is left unchanged and part of rotated image may be lost. Two modes of pixel interpolation are available, the bilinear filtering being more precise and computationally expensive.

Examples

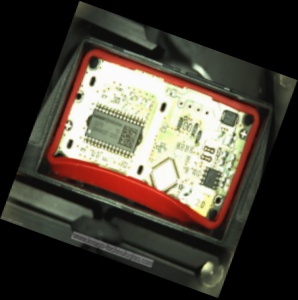

RotateImage performed on the sample image in Fit mode with inAngle = 20.0.

Errors
