AVL.CircleSection(AvlNet.Circle2D, float, float, AvlNet.Arc2D)

Computes an arciform section of the circle perimeter.

Syntax

public static void CircleSection(
	AvlNet.Circle2D inCircle,
	float inStartAngle,
	float inSweepAngle,
	out AvlNet.Arc2D outArc
)

Parameters

inCircle

Type: AvlNet.Circle2D
Input circle

inStartAngle

Type: System.Single
Direction at which the arc begins

inSweepAngle

Type: System.Single
Angular length of the arc (may be negative)

outArc

Type: AvlNet.Arc2D

Examples

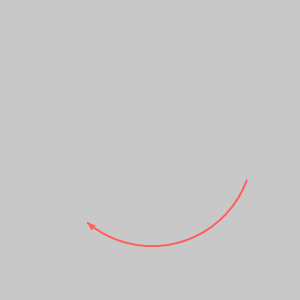

CircleSection performed on the sample circle, inStartAngle = 20.0 and inSweepAngle = 110.0.
