Draws rectangles on an image with two colors, depending on the status of each rectangle (usually: green or red for pass/fail status).

Namespace:	AvlNet
Assembly:	AVL.NET.dll

Syntax


public static void DrawRectangles_TwoColors(
	AvlNet.Image inImage,
	AvlNet.Rectangle2D?[] inRectangles,
	AvlNet.CoordinateSystem2D? inRectangleAlignment,
	AvlNet.Pixel inColorIfTrue,
	AvlNet.Pixel inColorIfFalse,
	bool?[] inConditions,
	AvlNet.DrawingStyle inDrawingStyle,
	bool inForceRgb,
	out AvlNet.Image outImage
)

Parameters

inImage: Type: AvlNet.Image
Input image
inRectangles: Type: System.Nullable<AvlNet.Rectangle2D>
inRectangleAlignment: Type: System.Nullable<AvlNet.CoordinateSystem2D>
inColorIfTrue: Type: AvlNet.Pixel
inColorIfFalse: Type: AvlNet.Pixel
inConditions: Type: System.Nullable<System.Boolean>
inDrawingStyle: Type: AvlNet.DrawingStyle
inForceRgb: Type: System.Boolean
Filter will convert monochromatic image to RGB if needed
outImage: Type: AvlNet.Image
Output image

This is Filter Equivalent. This function may be present in generated code, but should not be used in hand-written code.

Description

Filter draws rectangles on an input image.

If an rectangle dimensions exceeds image size it will not be drawn or will be drawn partially.

Examples

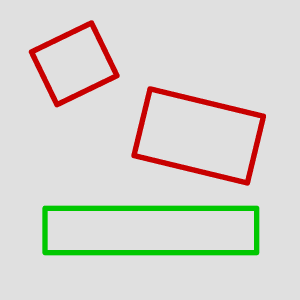

Example usage of the DrawRectangles_TwoColors on an empty image.

Errors
