AVL.SplitRegionIntoComponents(AvlNet.Region, float, bool, AvlNet.SplitAlgorithm?, AvlNet.Region[])

Splits a region into an array of regions. Operates by merging blobs in accordance to the inMaxDistance parameter.

Namespace:AvlNet
Assembly:AVL.NET.dll

Syntax


public static void SplitRegionIntoComponents(
	AvlNet.Region inRegion,
	float inMaxDistance,
	bool inRemoveBoundaryBlobs,
	AvlNet.SplitAlgorithm? inSplitAlgorithm,
	out AvlNet.Region[] outComponents
)

Parameters

inRegion
Type: AvlNet.Region
Input region
inMaxDistance
Type: System.Single
inRemoveBoundaryBlobs
Type: System.Boolean
Flag indicating whether the blobs on border of the input region should be removed or not
inSplitAlgorithm
Type: System.Nullable<AvlNet.SplitAlgorithm>
Algorithm that is used to split the region, if set to Auto, the algorithm with shorter predicted time of execution will be chosen, or null.
outComponents
Type: AvlNet.Region

Examples

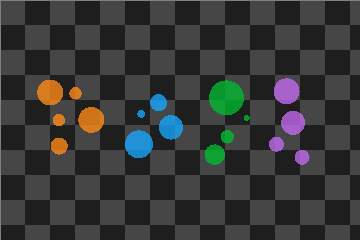

SplitRegionIntoComponents used with inMaxDistance = 50.

Remarks

This filter is mostly used in Blob Analysis Technique please refer to our Machine Vision Guide - Blob Analysis article.
