AVL.SplitChannels(AvlNet.Image, AvlNet.Image, AvlNet.Image, AvlNet.Image, AvlNet.Image)

Creates several monochromatic images from individual channels of the input image.

Namespace:AvlNet
Assembly:AVL.NET.dll

Syntax


public static void SplitChannels(
	AvlNet.Image inImage,
	out AvlNet.Image outMonoImage1,
	out AvlNet.Image outMonoImage2,
	out AvlNet.Image outMonoImage3,
	out AvlNet.Image outMonoImage4
)

Parameters

inImage
Type: AvlNet.Image
Input image
outMonoImage1
Type: AvlNet.Image
Image of the first channel
outMonoImage2
Type: AvlNet.Image
Image of the second channel
outMonoImage3
Type: AvlNet.Image
outMonoImage4
Type: AvlNet.Image

Description

The operation extracts the color channels of inImage as separate monochromatic images. Outputs corresponding to non-existing channels of an image are set to Nil.

Examples

An example image used as inImage.

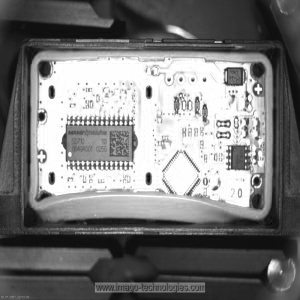

The resulting outMonoImage1.

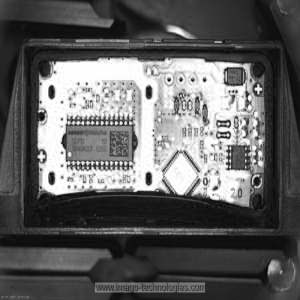

The resulting outMonoImage2.

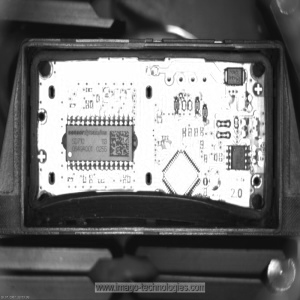

The resulting outMonoImage3.

See also
