AVL.DrawLines_Palette(AvlNet.Image, AvlNet.Line2D?[], AvlNet.CoordinateSystem2D?, AvlNet.Pixel[], AvlNet.DrawingStyle, bool, AvlNet.Image)

Draws lines on an image with multiple colors.

Namespace:AvlNet
Assembly:AVL.NET.dll

Syntax


public static void DrawLines_Palette(
	AvlNet.Image inImage,
	AvlNet.Line2D?[] inLines,
	AvlNet.CoordinateSystem2D? inLineAlignment,
	AvlNet.Pixel[] inColors,
	AvlNet.DrawingStyle inDrawingStyle,
	bool inForceRgb,
	out AvlNet.Image outImage
)

Parameters

inImage
Type: AvlNet.Image
Input image
inLines
Type: System.Nullable<AvlNet.Line2D>
inLineAlignment
Type: System.Nullable<AvlNet.CoordinateSystem2D>
inColors
Type: AvlNet.Pixel
inDrawingStyle
Type: AvlNet.DrawingStyle
inForceRgb
Type: System.Boolean
Filter will convert monochromatic image to RGB if needed
outImage
Type: AvlNet.Image
Output image

This is Filter Equivalent. This function may be present in generated code, but should not be used in hand-written code.

Description

The operation draws an array of lines on the inImage using common drawing parameters for all of them. As the length of every line is infinite, they are drawn partially.

Examples

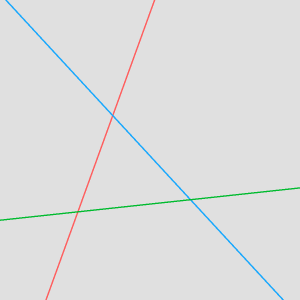

Example usage of the DrawLines_Palette on an empty image.
