You are here: Start » AVL.NET » AVL.DrawEllipses_SingleColor(AvlNet.Image, AvlNet.Rectangle2D?[], AvlNet.CoordinateSystem2D?, AvlNet.Pixel, AvlNet.DrawingStyle, bool, AvlNet.Image)

AVL.DrawEllipses_SingleColor(AvlNet.Image, AvlNet.Rectangle2D?[], AvlNet.CoordinateSystem2D?, AvlNet.Pixel, AvlNet.DrawingStyle, bool, AvlNet.Image)

Draws ellipses on an image with a single color.

Namespace:	AvlNet
Assembly:	AVL.NET.dll

Syntax


public static void DrawEllipses_SingleColor(
	AvlNet.Image inImage,
	AvlNet.Rectangle2D?[] inEllipses,
	AvlNet.CoordinateSystem2D? inEllipseAlignment,
	AvlNet.Pixel inColor,
	AvlNet.DrawingStyle inDrawingStyle,
	bool inForceRgb,
	out AvlNet.Image outImage
)

Parameters

inImage: Type: AvlNet.Image
Input image
inEllipses: Type: System.Nullable<AvlNet.Rectangle2D>
inEllipseAlignment: Type: System.Nullable<AvlNet.CoordinateSystem2D>
inColor: Type: AvlNet.Pixel
inDrawingStyle: Type: AvlNet.DrawingStyle
inForceRgb: Type: System.Boolean
Filter will convert monochromatic image to RGB if needed
outImage: Type: AvlNet.Image
Output image

This is Filter Equivalent. This function may be present in generated code, but should not be used in hand-written code.

Examples

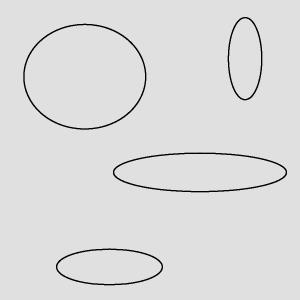

Example usage of the DrawEllipses_SingleColor on an empty image.

See also
