AVL.RotateSegment(AvlNet.Segment2D, AvlNet.Point2D?, float, bool, AvlNet.Segment2D)

Rotates a segment clockwise around a center point.

Syntax

public static void RotateSegment(
	AvlNet.Segment2D inSegment,
	AvlNet.Point2D? inCenter,
	float inAngle,
	bool inInverse,
	out AvlNet.Segment2D outSegment
)

Parameters

inSegment

Type: AvlNet.Segment2D

inCenter

Type: System.Nullable<AvlNet.Point2D>
Center of rotation (by default the mass center), or null.

inAngle

Type: System.Single
Clockwise angle of rotation

inInverse

Type: System.Boolean
Switches to the inverse operation

outSegment

Type: AvlNet.Segment2D

Examples

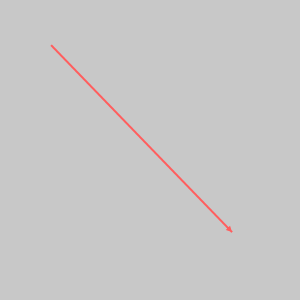

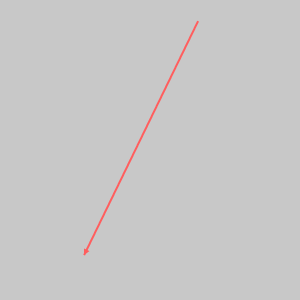

RotateSegment performed on the sample segment, inCenter = Auto, inAngle = 70.0 and inInverse = False.
