AVL.RegionBoundingRectangle(AvlNet.Region, float?, AvlNet.BoundingRectangleFeature, AvlNet.Rectangle2D, AvlNet.Point2D, float, float)

Computes the smallest rectangle containing a region.

Namespace:	AvlNet
Assembly:	AVL.NET.dll

Syntax


public static void RegionBoundingRectangle(
	AvlNet.Region inRegion,
	float? inRectangleOrientation,
	AvlNet.BoundingRectangleFeature inBoundingRectangleFeature,
	out AvlNet.Rectangle2D outBoundingRectangle,
	out AvlNet.Point2D outCenter,
	out float outLongSide,
	out float outShortSide
)

Parameters

inRegion: Type: AvlNet.Region
Input array of points
inRectangleOrientation: Type: System.Nullable<System.Single>
Expected orientation of the resulting rectangle, or null.
inBoundingRectangleFeature: Type: AvlNet.BoundingRectangleFeature
Determines what kind of bounding rectangle will be computed
outBoundingRectangle: Type: AvlNet.Rectangle2D
The smallest bounding rectangle of the input region
outCenter: Type: AvlNet.Point2D
outLongSide: Type: System.Single
outShortSide: Type: System.Single

Examples

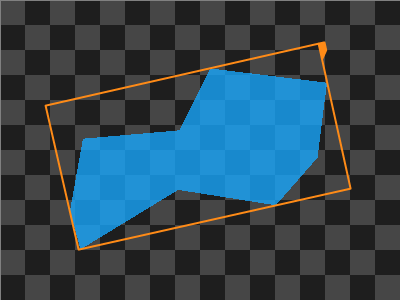

RegionBoundingRectangle performed on a sample region.

Remarks

Orientation of the resulting rectangle will be in range of 0..90 degrees. Consider using NormalizeRectangleOrientation if another orientation is more appropriate.

Errors
