AVL.CreateArcPath(AvlNet.Arc2D, int, AvlNet.Path)

Creates an open path containing cocircular, equidistant points.

Namespace:	AvlNet
Assembly:	AVL.NET.dll

Syntax


public static void CreateArcPath(
	AvlNet.Arc2D inArc,
	int inPointCount,
	out AvlNet.Path outPath
)

Parameters

inArc: Type: AvlNet.Arc2D
inPointCount: Type: System.Int32
Number of points in the resulting path
outPath: Type: AvlNet.Path
Output path

Description

The operation produces an open path that consists of inPointCount equidistant points selected along the inArc arc.

Examples

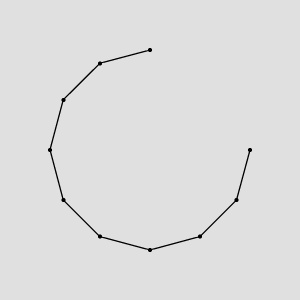

CreateArcPath run using a sample arc with inPointCount = 10.
