AVL.PointToLineDistance(AvlNet.Point2D, AvlNet.Line2D, float, float, AvlNet.Segment2D)

Measures the distance between a point and a line.

Namespace:AvlNet
Assembly:AVL.NET.dll

Syntax


public static void PointToLineDistance(
	AvlNet.Point2D inPoint,
	AvlNet.Line2D inLine,
	float inResolution,
	out float outDistance,
	out AvlNet.Segment2D outConnectingSegment
)

Parameters

inPoint
Type: AvlNet.Point2D
inLine
Type: AvlNet.Line2D
inResolution
Type: System.Single
Number of real-world units per one pixel
outDistance
Type: System.Single
outConnectingSegment
Type: AvlNet.Segment2D

Examples

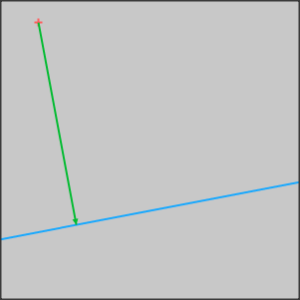

PointToLineDistance performed on a sample point and a sample line. The green segment is the value of outConnectingSegment output.

Errors

Error type Description
DomainError Indefinite line on input in PointToLineDistance.

See also
