You are here: Start » AVL.NET » AVL.PathToPointDistance(AvlNet.Point2D, AvlNet.Path, float, float, AvlNet.Segment2D)

AVL.PathToPointDistance(AvlNet.Point2D, AvlNet.Path, float, float, AvlNet.Segment2D)

Computes the smallest distance between a path and a point.

Namespace:	AvlNet
Assembly:	AVL.NET.dll

Syntax


public static void PathToPointDistance(
	AvlNet.Point2D inPoint,
	AvlNet.Path inPath,
	float inResolution,
	out float outDistance,
	out AvlNet.Segment2D outConnectingSegment
)

Parameters

inPoint: Type: AvlNet.Point2D
Input point
inPath: Type: AvlNet.Path
Input path
inResolution: Type: System.Single
outDistance: Type: System.Single
Minimal distance between input path and input point
outConnectingSegment: Type: AvlNet.Segment2D

Description

The operation computes the minimal distance between the inPoint and inPath and, additionally, the outConnectingSegment segment corresponding to the result.

Examples

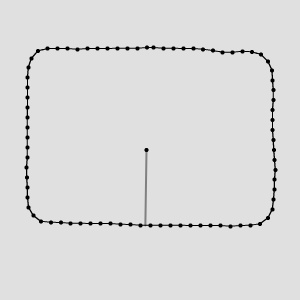

The PathToPointDistance run on the sample data produces outDistance = 75.373.

Errors
