AVL.DrawLines_TwoColors(AvlNet.Image, AvlNet.Line2D?[], AvlNet.CoordinateSystem2D?, AvlNet.Pixel, AvlNet.Pixel, bool?[], AvlNet.DrawingStyle, bool, AvlNet.Image)

Draws lines on an image with two colors, depending on the status of each line (usually: green or red for pass/fail status).

Namespace:	AvlNet
Assembly:	AVL.NET.dll

Syntax


public static void DrawLines_TwoColors(
	AvlNet.Image inImage,
	AvlNet.Line2D?[] inLines,
	AvlNet.CoordinateSystem2D? inLineAlignment,
	AvlNet.Pixel inColorIfTrue,
	AvlNet.Pixel inColorIfFalse,
	bool?[] inConditions,
	AvlNet.DrawingStyle inDrawingStyle,
	bool inForceRgb,
	out AvlNet.Image outImage
)

Parameters

inImage: Type: AvlNet.Image
Input image
inLines: Type: System.Nullable<AvlNet.Line2D>
inLineAlignment: Type: System.Nullable<AvlNet.CoordinateSystem2D>
inColorIfTrue: Type: AvlNet.Pixel
inColorIfFalse: Type: AvlNet.Pixel
inConditions: Type: System.Nullable<System.Boolean>
inDrawingStyle: Type: AvlNet.DrawingStyle
inForceRgb: Type: System.Boolean
Filter will convert monochromatic image to RGB if needed
outImage: Type: AvlNet.Image
Output image

This is Filter Equivalent. This function may be present in generated code, but should not be used in hand-written code.

Description

The operation draws an array of lines on the inImage using common drawing parameters for all of them. As the length of every line is infinite, they are drawn partially.

Examples

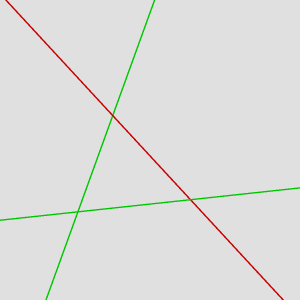

Example usage of the DrawLines_TwoColors on an empty image.

Errors
