AVL.ImageProfileAlongPath(AvlNet.ImageProfileAlongPathState, AvlNet.Image, AvlNet.Path, AvlNet.CoordinateSystem2D?, int, AvlNet.InterpolationMethod, float, AvlNet.Profile, AvlNet.Path, AvlNet.Path, AvlNet.Path[])

Creates a series of segments across the input path, measures the average pixel intensity on each of the segments, and creates the final profile from that values.

Namespace:AvlNet
Assembly:AVL.NET.dll

Syntax


public static void ImageProfileAlongPath(
	ref AvlNet.ImageProfileAlongPathState ioState,
	AvlNet.Image inImage,
	AvlNet.Path inScanPath,
	AvlNet.CoordinateSystem2D? inScanPathAlignment,
	int inScanWidth,
	AvlNet.InterpolationMethod inInterpolationMethod,
	float inSmoothingStdDev,
	out AvlNet.Profile outProfile,
	out AvlNet.Path outPath,
	out AvlNet.Path outAlignedScanPath,
	out AvlNet.Path[] diagSamplingPoints
)

Parameters

ioState
Type: AvlNet.ImageProfileAlongPathState
inImage
Type: AvlNet.Image
Input image
inScanPath
Type: AvlNet.Path
Path along which the profile is extracted
inScanPathAlignment
Type: System.Nullable<AvlNet.CoordinateSystem2D>
Adjusts the scan path to the position of the inspected object, or null.
inScanWidth
Type: System.Int32
Width of the scan area
inInterpolationMethod
Type: AvlNet.InterpolationMethod
Interpolation method used to compute pixel brightness in locations of not-integer coordinates
inSmoothingStdDev
Type: System.Single
Standard deviation of the gaussian smoothing applied to the extracted profile
outProfile
Type: AvlNet.Profile
The resulting profile of the pixel brightness
outPath
Type: AvlNet.Path
The path consisting of the points from which the resulting profile is extracted
outAlignedScanPath
Type: AvlNet.Path
diagSamplingPoints
Type: AvlNet.Path
Array of paths each one containing the sampling points that contributed to a single value of the extracted profile

Examples

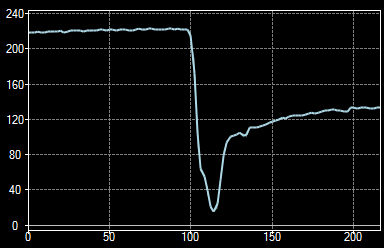

ImageProfileAlongPath applied on an image of a bottle (inScanWidth = 5)
