AVL.CreateSphereMap(AvlNet.ImageFormat, AvlNet.Rectangle2D, float, int?, int, AvlNet.InterpolationMethod, AvlNet.SpatialMap, AvlNet.Region)

Creates a spatial map for transformations from a sphere surface to a flat rectangle.

Namespace:	AvlNet
Assembly:	AVL.NET.dll

Syntax


public static void CreateSphereMap(
	AvlNet.ImageFormat inImageFormat,
	AvlNet.Rectangle2D inSphereRectangle,
	float inSphereRadiusCorrection,
	int? inNewDimension,
	int inMargin,
	AvlNet.InterpolationMethod inInterpolationMethod,
	out AvlNet.SpatialMap outSpatialMap,
	out AvlNet.Region outOutputRegion
)

Parameters

inImageFormat: Type: AvlNet.ImageFormat
Information about dimensions, depth and pixel type of the image
inSphereRectangle: Type: AvlNet.Rectangle2D
Bounding rectangle of a sphere
inSphereRadiusCorrection: Type: System.Single
How many pixels the sphere radius is larger than the visible circle radius
inNewDimension: Type: System.Nullable<System.Int32>
Width and height of an image created by output spatial map application, or null.
inMargin: Type: System.Int32
Width of the sphere extreme points zone excluded from spatial map
inInterpolationMethod: Type: AvlNet.InterpolationMethod
Interpolation method used in extraction of image pixel values
outSpatialMap: Type: AvlNet.SpatialMap
Output spatial map
outOutputRegion: Type: AvlNet.Region

Examples

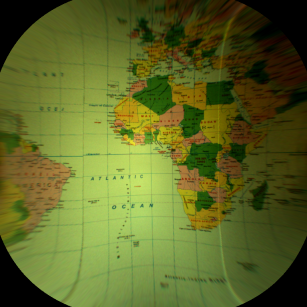

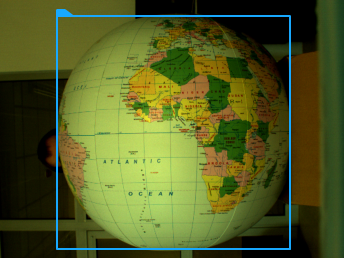

Results of applying RemapImage with a spatial map created with the CreateSphereMap filter.

Hardware Acceleration

This operation supports automatic parallelization for multicore and multiprocessor systems.

Hardware acceleration settings may be manipulated with Settings class.

Errors
