AVL.AlignCircle(AvlNet.Circle2D, AvlNet.CoordinateSystem2D, bool, AvlNet.Circle2D)

Moves a circle from a local coordinate system to the absolute one.

Namespace:	AvlNet
Assembly:	AVL.NET.dll

Syntax


public static void AlignCircle(
	AvlNet.Circle2D inCircle,
	AvlNet.CoordinateSystem2D inAlignment,
	bool inInverse,
	out AvlNet.Circle2D outCircle
)

Parameters

inCircle: Type: AvlNet.Circle2D
inAlignment: Type: AvlNet.CoordinateSystem2D
Coordinate system to align to
inInverse: Type: System.Boolean
Switches to the inverse transform
outCircle: Type: AvlNet.Circle2D

Description

AlignCircle aligns the inCircle to the inAlignment coordinate system. The input circle is translated, rotated and scaled.

The inAlignment is usually a coordinate system found by some template matching algorithm.

Examples

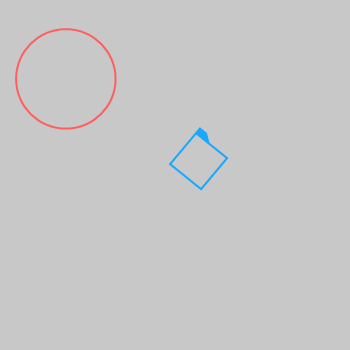

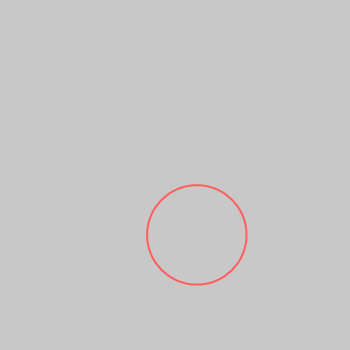

AlignCircle performed on the sample circle. The inAlignment is drawn on the first image in blue.
