AVL.LineArcIntersection(AvlNet.Line2D, AvlNet.Arc2D, AvlNet.Point2D?, AvlNet.Point2D?)

Computes the common points of an arc and a line.

Namespace:AvlNet
Assembly:AVL.NET.dll

Syntax


public static void LineArcIntersection(
	AvlNet.Line2D inLine,
	AvlNet.Arc2D inArc,
	out AvlNet.Point2D? outIntersectionPoint1,
	out AvlNet.Point2D? outIntersectionPoint2
)

Parameters

inLine
Type: AvlNet.Line2D
inArc
Type: AvlNet.Arc2D
outIntersectionPoint1
Type: System.Nullable<AvlNet.Point2D>
outIntersectionPoint2
Type: System.Nullable<AvlNet.Point2D>

Examples

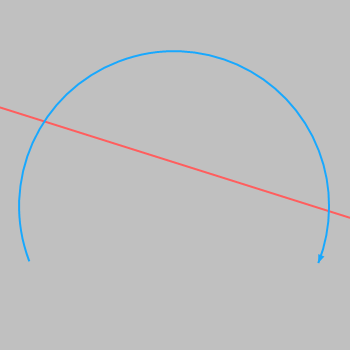

LineArcIntersection performed on line and arc.

Errors

Error type Description
DomainError Indefinite line on input in LineArcIntersection.

See also
