AVL.AlignArc(AvlNet.Arc2D, AvlNet.CoordinateSystem2D, bool, AvlNet.Arc2D)

Moves an arc from a local coordinate system to the absolute one.

Namespace:	AvlNet
Assembly:	AVL.NET.dll

Syntax


public static void AlignArc(
	AvlNet.Arc2D inArc,
	AvlNet.CoordinateSystem2D inAlignment,
	bool inInverse,
	out AvlNet.Arc2D outArc
)

Parameters

inArc: Type: AvlNet.Arc2D
inAlignment: Type: AvlNet.CoordinateSystem2D
Coordinate system to align to
inInverse: Type: System.Boolean
Switches to the inverse transform
outArc: Type: AvlNet.Arc2D

Description

AlignArc aligns the inArc to the inAlignment coordinate system. The input arc is translated, rotated and scaled.

The inAlignment is usually a coordinate system found by some template matching algorithm.

Examples

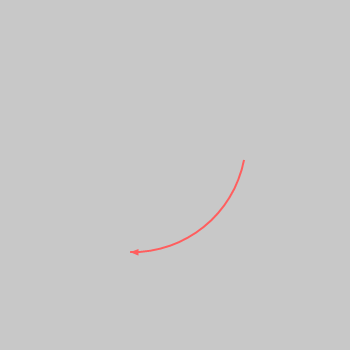

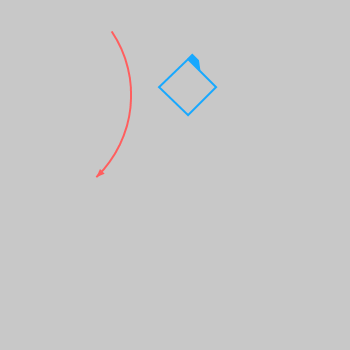

AlignArc performed on the sample arc. The inAlignment is drawn on the first image in blue.
