RegionBoundingRectangle

Computes the smallest rectangle containing a region.

Syntax

void avl::RegionBoundingRectangle
(
	const avl::Region& inRegion,
	atl::Optional<atl::real> inRectangleOrientation,
	avl::BoundingRectangleFeature::Type inBoundingRectangleFeature,
	avl::Rectangle2D& outBoundingRectangle,
	atl::Optional<avl::Point2D&> outCenter = atl::NIL,
	atl::Optional<atl::real&> outLongSide = atl::NIL,
	atl::Optional<atl::real&> outShortSide = atl::NIL
)

void RegionBoundingRectangle
(
	AvlNet.Region inRegion,
	float? inRectangleOrientation,
	AvlNet.BoundingRectangleFeature inBoundingRectangleFeature,
	out AvlNet.Rectangle2D outBoundingRectangle,
	out AvlNet.Point2D? outCenter,
	out float? outLongSide,
	out float? outShortSide
)

Parameters

Name	Type	Default	Description
inRegion	const Region&		Input array of points
inRectangleOrientation	Optional<real>	NIL	Expected orientation of the resulting rectangle
inBoundingRectangleFeature	BoundingRectangleFeature::Type	MinimalArea	Determines what kind of bounding rectangle will be computed
outBoundingRectangle	Rectangle2D&		The smallest bounding rectangle of the input region
outCenter	Optional<Point2D&>	NIL	Center of the bounding rectangle
outLongSide	Optional<real&>	NIL	Length of the bounding rectangle long side
outShortSide	Optional<real&>	NIL	Length of the bounding rectangle short side

Hints

If the input region is not guaranteed to be non-empty, precede this filter with SkipEmptyRegion.

Examples

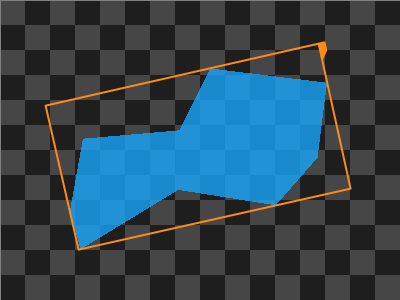

RegionBoundingRectangle performed on a sample region.

Remarks

Orientation of the resulting rectangle will be in range of 0..90 degrees. Consider using NormalizeRectangleOrientation if another orientation is more appropriate.

Errors

Error type	Description
DomainError	Empty region on input in RegionBoundingRectangle.
