RotateLine

Rotates a line clockwise around a center point.

Syntax

void avl::RotateLine
(
	const avl::Line2D& inLine,
	const avl::Point2D& inCenter,
	atl::real inAngle,
	bool inInverse,
	avl::Line2D& outLine
)

void RotateLine
(
	AvlNet.Line2D inLine,
	AvlNet.Point2D inCenter,
	float inAngle,
	bool inInverse,
	out AvlNet.Line2D outLine
)

Parameters

Name	Type	Description
inLine	const Line2D&
inCenter	const Point2D&	Center of rotation
inAngle	real	Clockwise angle of rotation
inInverse	bool	Switches to the inverse operation
outLine	Line2D&

Examples

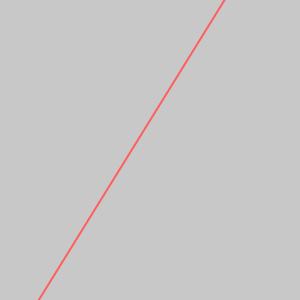

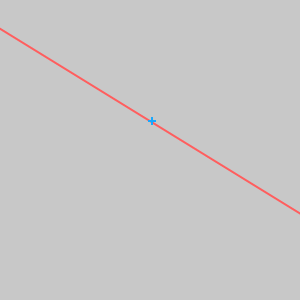

RotateLine performed on the sample line, inCenter = (152.0, 121.0), inAngle = 90.0 and inInverse = False. The inCenter point is drawn on the first image in blue.

Errors

Error type	Description
DomainError	Indefinite line on input in RotateLine.
